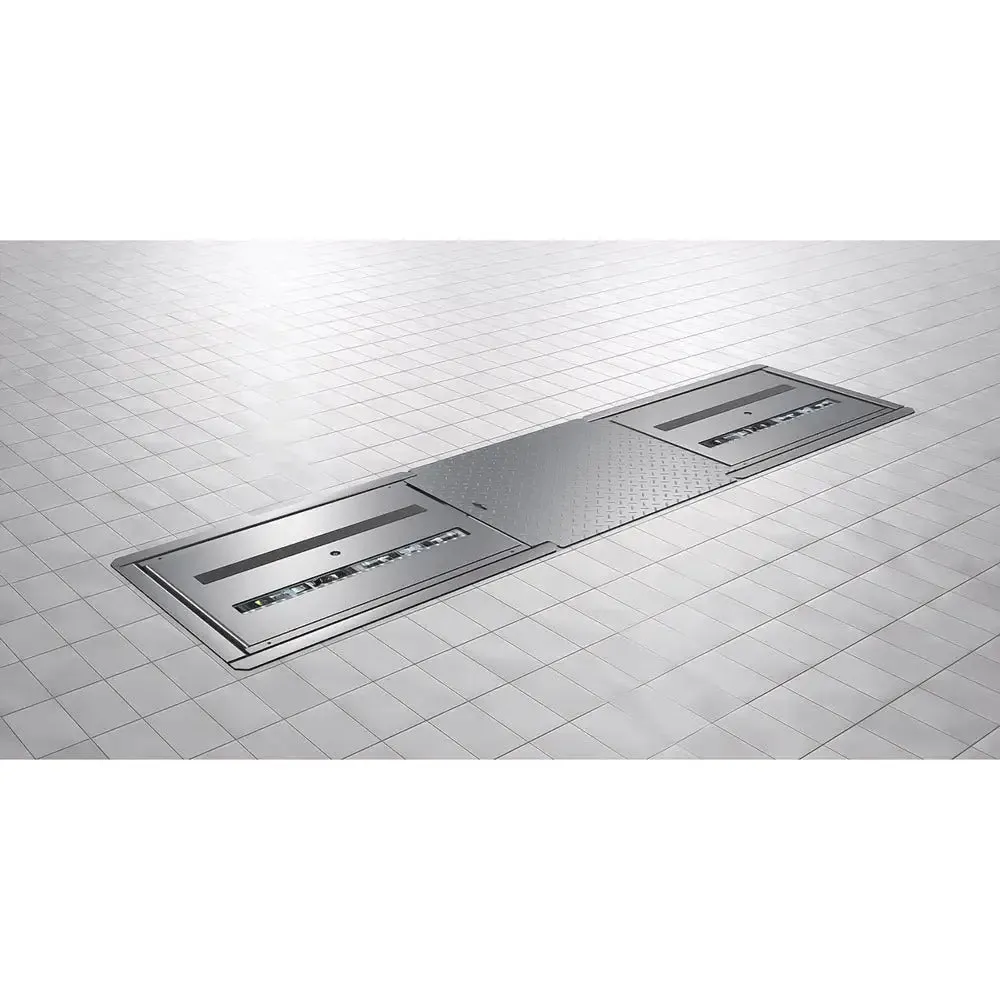

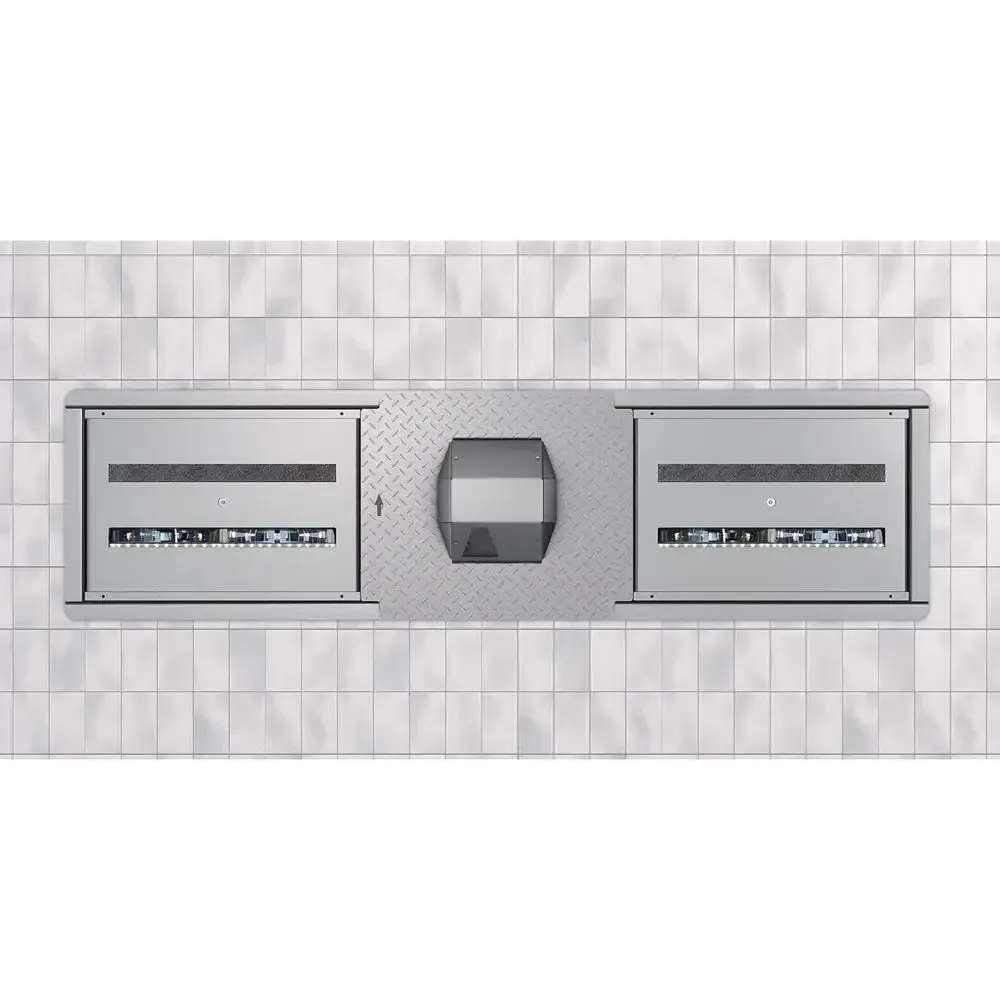

Get precise tire tread measurements in just 5 seconds with Coats's advanced 3D camera technology. There are no moving parts, so it's nearly maintenance-free. Plus, there are no subscription fees! You can project the results onto a Smart TV, Computer, or Tablet.
Features:
- NO subscription fees
- Tire tread measurement in 5 seconds
- Measurements start as the vehicle passes over both forward and reverse
- Results can be projected on a Smart-TV, Computer, or Tablet
- No internet connection or shop air needed
- Precision readings and years of service thanks to advanced 3D camera technology
- Measuring technology: color-coded light projection
- Measurement accuracy: - 1.0 mm
- No moving parts - nearly maintenance-free
- Installation not included
Specs:
Footprint (surface mount with ramps) - 3.22 in x 88.39 in x 40.94 inMaximum scan width - 17.7 in
Measurement accuracy - /- 1mm
Maximum vehicle speed - 5 mph
Cycle time with permitted speed range - 10 Seconds
Power - 100-240VAC / 50 - 60Hz
Maximum load axle weight - 8,818 lbs
Environmental rating (sensors) - IP65
Operating temperature range - -13deg.F to 113deg.F
Communication - Wireless / LAN
Data outputs - Wear patterns and tread depths
Warranty - 1 Year Parts, 6 Months Labor
